PHONO PLUGS AND JACKS
PATCH CORDS & MOLDED CABLE ASSEMBLIES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

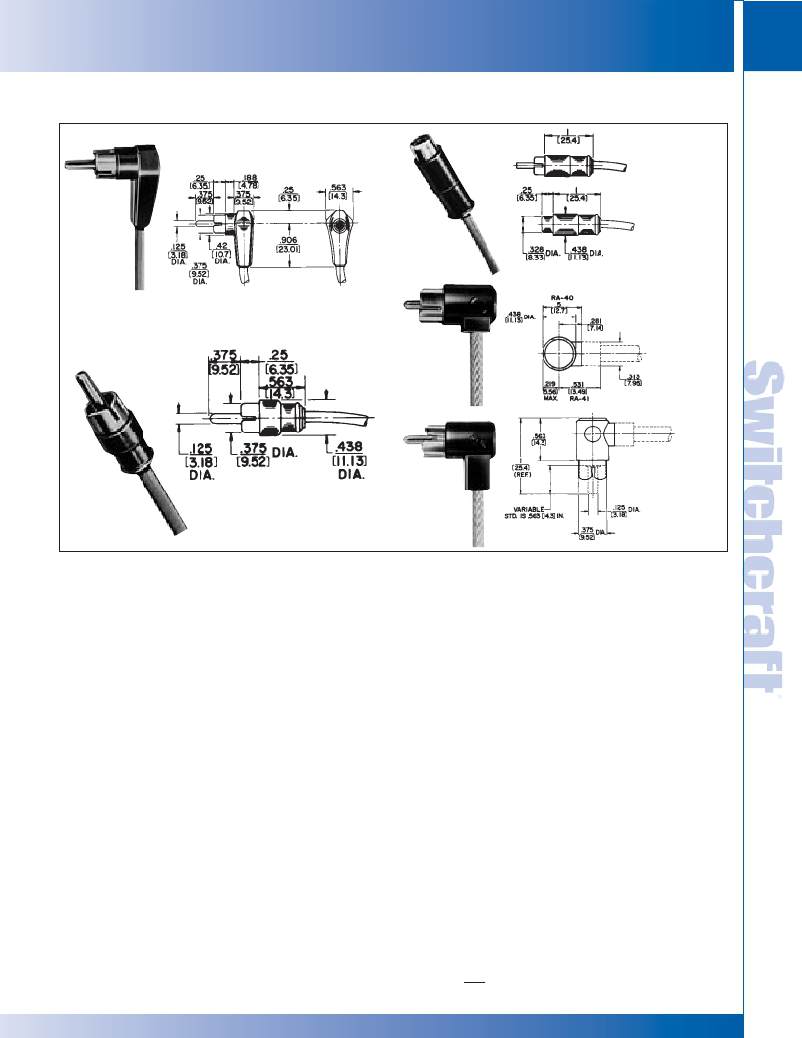

MOLDED CABLE ASSEMBLIES With Phono Plugs and Phono Extension Jacks
255
? RA-35
Termination Code: Special Order
ST-40
Termination Code: 26
ST-60
Termination Code: 82
RA-40 (short handle)
Termination Code: 29
ST-35
Termination Code: 25
RA-41 (long handle)
Termination Code: 31
SPECIFICATIONS
PLUG
Tip (prong): Nickel-plated, copper alloy.
Sleeve Connection: Plated copper alloy.
Insulation: Rigid plastic or thermoplastic.
Molded Handle: Thermoplastic.
Standard Colors: Gray, black, brown, red, white, tan,
or blue. Other colors available on special order.
EXTENSION JAX
Tip Spring: Nickel-plated, hardened copper alloy.
Sleeve Connection: Plated steel.
Insulation: Rigid plastic.
Molded Handle (both Plug and Jack): Plastic.
Standard Colors: Gray, white, black and brown.
Other colors available on special order.
CABLES
RA35, ST35, ST40, ST60:
Standard Shielded Cable—Type W-1000-1.
Standard Parallel Cable (lamp cord)—Type W-1033-1.
RA40, RA41:
Standard Shielded Cable—Type W-1000-1 and W-1032-1.
Standard Unshielded (Parallel) Cable—Type W-1041-1.
NOTE: See Standard Cable Chart on page 260 for details.
Order by part number from guide on page 259.
Special Cable: We will build assemblies on cable furnished
by you (maximum diameter varies for types RA35, ST35,
ST40) up to .20" (5.08 mm) outside diameter for RA40 and
RA41 or on cable we purchase to your specifications. Jacket
must have a temperature rating of 60 C minimum.
? RA35: Right-angle phono plug with body extension for
recessed jack. Cable: .188" (4.78 mm) outside diameter
maximum. Completely shielded. (Available on special order only.)
ST35: Straight phono plug with “finger grip” handle. Handle
.438" (11.13 mm) outside diameter. Completely shielded.
ST40: Straight phono plug, similar to ST35, except with
longer handle.
ST60: Straight extension jack with “finger grip” handle. Handle
.438" (11.13 mm) outside diameter. Completely shielded.
RA40: Compact right-angle phono plug with low profile, high
quality insulation, and short .281" (7.14 mm) molded handle
for audio and RF connections where space is at a minimum.
RA41: Same as RA40, except handle is .531" (13.49 mm) long.
DESIGN FEATURES
? Can be specified with phenolic, nylon, glass-filled Teflon
or polypropylene internal insulators. Polypropylene is
recommended for RF connecting applications.
? Applications include stereo, PA and intercoms, audio-visual
and telecommunications, including RF connections in
2-way radio and paging systems.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
